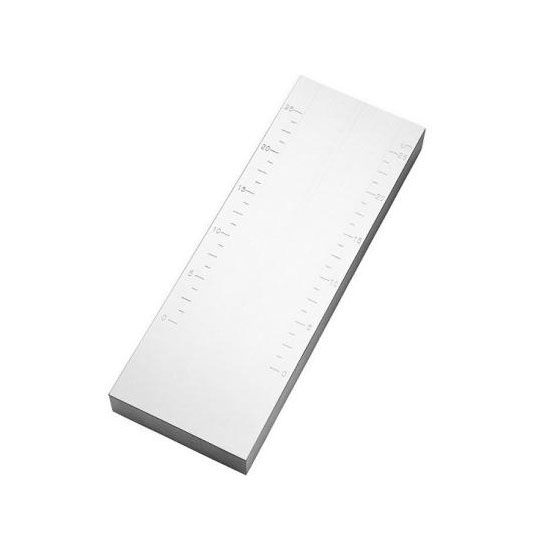

Ink Double-Channel Grind Gauge
Widely used in industries such as paint, coatings, inks, food, pharmaceuticals, etc.A fine-grained plate is a flat steel block with grooves on the surface, and the depth of the grooves ranges from maximum at one end to zero at the other.On the steel block, there is a scale unit engraved to indicate the depth of the groove, in order to read the size of the particle value.
Standard
GB/T 1724，6753.1，13217.3，13217.5
ISO 1524
Technical Parameter
Order Number | No. of grooves | Groove width | Range | Scale units |
PS 2440 | 2 | 25 mm | 0-15 | μm |
PS 2441 | 2 | 25 mm | 0-25 | μm |
PS 2442 | 2 | 25 mm | 0-50 | μm |
PS 2443 | 2 | 25 mm | 0-100 | μm |
External dimensions: 240 * 85 * 25 mm; Shipping weight: 5 kg
Shipping List
Grind Gauge, scraper, instruction
